Collator SECO B3
Collating – stitching – folding – trimming of brochures, multipart forms, calendars etc.

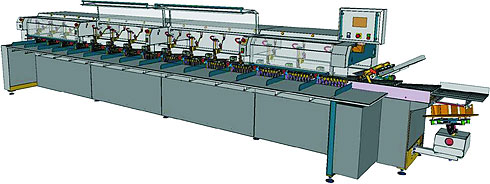

SECO B3- F with 15 flat pile stations

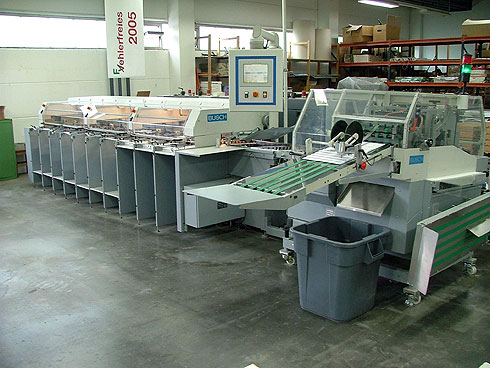

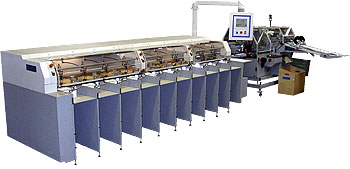

SECO B3- H with 10 high pile stations and stitch-fold-trim unit
In modular construction from 6 stations onward
in flat or high pile design
as stand-alone-machine or linked to a stitch-fold-trim unit
The machines are equipped with a stream conveyor table and
- Operating panel with touch screen display
- Electronic adjustment for speed and sheet placement
- Ultrasonic misfeed and double sheet control
- Connectable ejector
- Integrated pressure-vacuum pump
- Jogger
- Paper jam detector
Stitch-fold-trim unit (option)

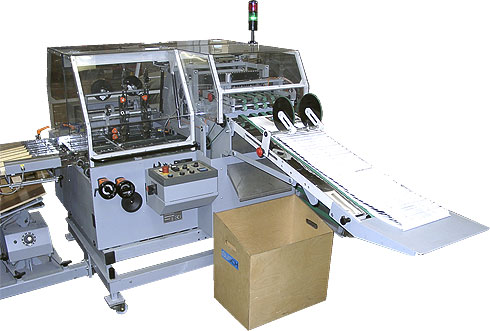

Stitch-fold-trim unit HFS B3
- With 2-6 stitching heads, type Hohner 48/S5
- Fast format change-over by central adjustment
- Electro-pneumatic jogger in stitching position
- Folding knife
- Face trimming by top and bottom knife
- Brochure delivery with kicker and preselection counter
- Slewable calendar delivery
| Model | SECO B3-F Flat pile |
SECO B3-H High pile |
HFS B3 Stitch-fold-trim unit |
|---|---|---|---|
| Max. paper size | 350x500 mm | 350x500 mm | 350x500 mm |
| Min. paper size | 105x125 mm | 105x125 mm | 105x125 mm |
| Min. paper size for trimmed brochure | 105x60 mm | ||
| Max. height of flat pile | 70 mm | ||
| Max. height of high pile | 650 mm | ||
| Max. stitching thickness | 6,0 mm | ||
| Max. folding thickness | 2,5 mm | ||
| Number of stations | min. 6 | min. 6 | |
| Output of machine | 3200 cycles/h | 3200 cycles/h | 3600 cycles/h |
