Pile Hoists



Solid engineering and modern technology.
The new Busch product is an indispensible component of cutting systems for ergonomic working at a comfortable height.

For automatic lifting and lowering of palletized cutting material. An increased productivity and an easier operation are achieved by the individual adjustable working height. The pile hoists can also be used for de-stacking cutting material.

Features:

  • Stable, welded design
  • Automated hydraulic lifting and lowering mechanism (direct drive without lifting chains)
  • Adjustable working height thanks to light sensor
  • Operating arm can be fitted on the left or right
  • Automated lifting and lowering mechanism can be switched over for unloading and de-stacking
  • With optional pre-piling device for precise de-stacking (for easy retrofitting)

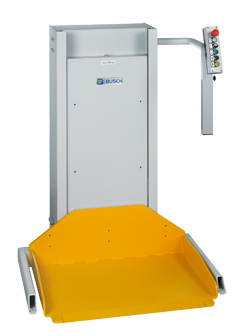

HL 85

HL 110

HL 125

HL 155

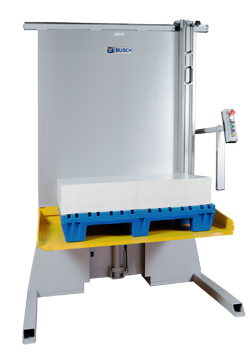

HL 125 with pre-piling device

HL 125 with pre-piling device


Model   HL 85 HL 110 HL 125 HL 155
Platform depth mm 620 780 840 1100
Inside platform width mm 850 1100 1250 1550
Max. stroke. mm 900 900 900 900
Max. load. kg 500 1000 1000 1500
Weight kg 400 500 530 770
