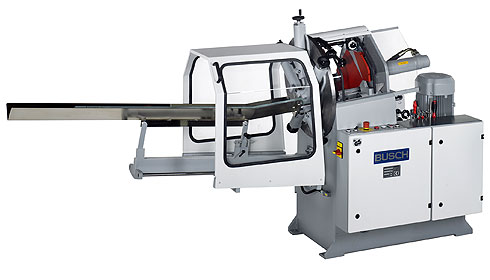

Die-Cutting Machines B / B + P
This model offers a larger maximum die-cut size and much greater punching power.
The die-cutter handles all types of material, especially plastics.
Standard equipment includes 5 adjustable clamping arms and waste slitters with holders.
Once the material (square-cut sheets) is inserted and the protective plexiglass door is closed, the cutting stroke is activated – on model B by closing the protective door manually, on model B+P a push-button control closes the door pneumatically.
Release of cutting stroke
B
by closing the protective door manually
B+P
by pneumatic push-button control
| Model | B | B+P | |
|---|---|---|---|
| Max. die-cut size | mm | 230 x 230 | 230 x 230 |
| Min. die-cut size | mm | 10 x 10 | 10 x 10 |
| Max. stack height (height of cutting die 60 mm) |
mm | 170 | 170 |
| Die-cutting pressure | kg | 5.700 | 5.700 |
| Die-cutting strokes max. | p/min | 11 | 13 |
| Max. machine output (feeding 1.000 sheets, label paper 80 gsm) |
sheets/h | 660.000 | 780.000 |
| Weight | kg | 855 | 860 |
Cutting dies for individual shapes
are supplied by die makers.
See details in our brochure
Die-Cutting Machines.
are supplied by die makers.
See details in our brochure
Die-Cutting Machines.
