Second-hand Machines

Year of manufacture 1997, Serial No. 409/642
Thoroughly reconditioned-

With pressure control flaps, airing, aligning gauge

Max. sheet size:

800 x 1200 mm

Platform width:

1250 mm

Max. carrying power:

1000 kg

Max. pile height incl.pallets:

1750 mm

Min. pile height incl. pallets:

820 mm

Electrics:

A.C three-phase 400 V, 50 Hz

With 2 blowers each 2,2 kW (for double airing power) Control desk turnable in two directions With new varnish: light grey-anthracite
The image shows the original machine in thoroughly reconditioned state

Year of manufacture 1999, Serial No. 411/809
Thoroughly reconditioned-

With pressure control flaps, airing, jogging, aligning gauge

Max. sheet size:

800 x 1200 mm

Platform width:

1250 mm

Max. carrying power:

1000 kg

Max. pile height incl.pallets:

1350 mm

Min. pile height incl. pallets:

650 mm

Electrics:

A.C three-phase 400 V, 50 Hz

Control desk turnable in two directions With new varnish: light grey-anthracite
The image shows the machine model in thoroughly reconditioned state

Manufacturer: Carpidraulic, Italy
Exhibition machine, brand new

Mobile, without airing

Electrics:

Battery-powered 24 V, Capacity 130 Ah

Max. sheet size:

720 x 1040 mm

Max. carrying power:

1000 kg

Fork length:

700 mm

Fork width:

180 mm

Machine varnish:

light grey-silver-grey

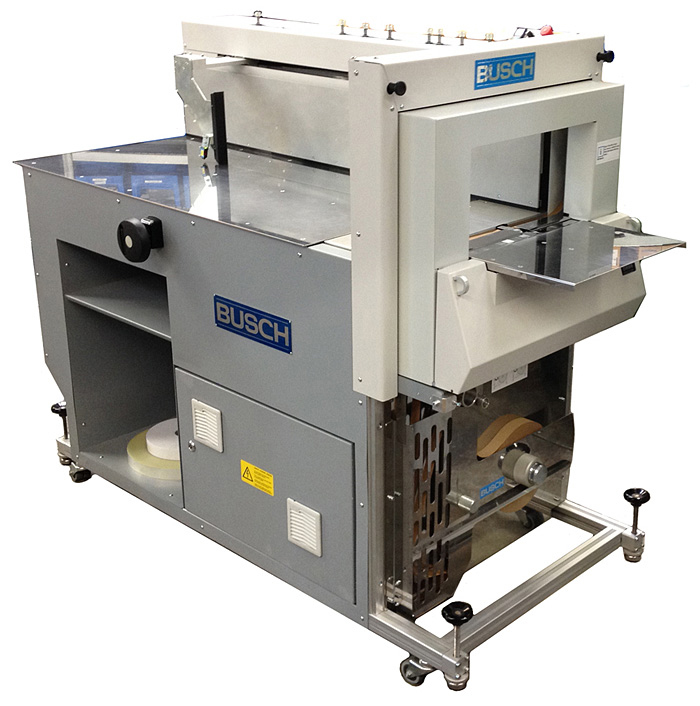

Exhibition machine, brand-new

With integrated feed pusher, limit stops at the banding section and large reel stand, including special outfit: pneumatic compression of piles, roller delivery, compressor.

For banding with kraft paper or PP foil tape. For automatic release by sensor or manually by push-button or foot pedal

Tape width:

30 mm

Reel length:

• kraft paper: 800 m
• PP foil: 1200 m

Measurements of product, min./max.:

• Length: 70/300 mm
• Width: 50/360 mm
• Height approx: 5* - 180 mm (*25mm with automatic release)

Output of machine:

14-18 strokes/min

Electrics:

A.C single phase 230 V, 50 Hz

Machine varnish:

light grey-silver-grey
