Table Banding Machine TB 39
A new model - designed for larger banding formats.
The machine has a larger format compared to series TB 26 and is equipped with a closed tape guide.
Banding material is either coated kraft paper tape (white or brown) or transparent polypropylene foil tape. Both machine models for 30 or 50 mm tape width are equipped with a digital display, error message and electronic temperature control. Adjustable position stops are offered as an option.
Machines can be operated by:
- single stroke release by press-button
- single stroke release by foot pedal
- automatic sensor release

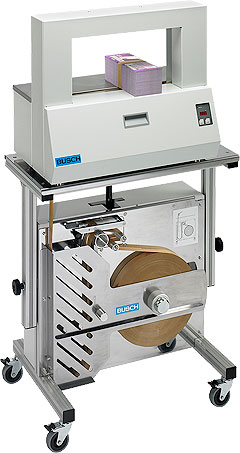

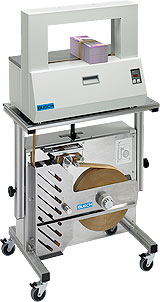

For high volume production a movable Large Reel Stand is offered for reels with 800 m kraft paper tape or 1200 m foil tape. The stand height is easily adjustabe by means of a gas pressure spring. The band feeding is controlled by sensor detection.
| Table Banding Machine | TB 39-30 | TB 39-50 |
|---|---|---|
| Banding material | coated kraft paper, polypropylene foil (PP) |
coated kraft paper, polypropylene foil (PP) |
| Tape widths | 30 mm | 50 mm |
| Reel length - kraft paper/foil | 150 / 200 m | 150 / 200 m |
| Machine output strokes/min | 16 - 20 | 16 - 20 |
| Max. measurements of products to be banded : - Length - Width - Height |
no limit 390 mm 200 mm |
no limit 390 mm 200 mm |
| Machine measurements (length x width x height) | 600 x 390 x 510 mm | 600 x 450 x 510 mm |
| Weight | 33 kg | 35 kg |
| Large Reel Stand for TB 39-30 and TB 39-50 | |
|---|---|
| Max reel diameter | 400 mm |
| Inside diameter of reel core | 50 mm |
| Reel length - kraft paper | 800 m / reel |
| Reel length - PP-foil | 1200 m / reel |
| Tape widths | 20, 30, 40, 50 mm |
| Measurements: (length x width x height) | 788 x 567 x 663-932 mm |
| Weight | 39 kg |
(also for use with TB 26 I/II)
Brochure Table Banding Machines (PDF 1856 kB)
Accessory - Gripper for Table Banding Machines (PDF 245 kB)

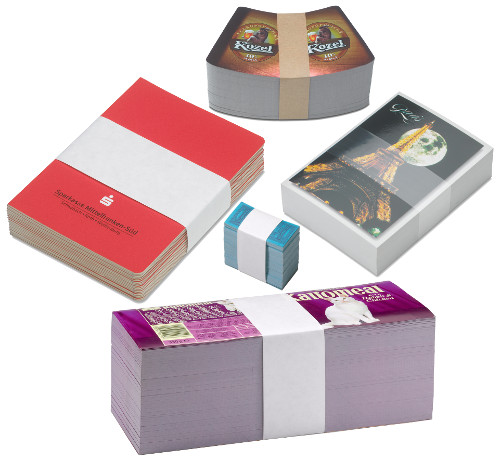

Banding material
- Suitable banding material for our BUSCH Banding Machines in top quality and different versions available ex stock.
- More information can be found here.
To the showroom
