Waste Conveyors on Flat-Bed Die-Cutters

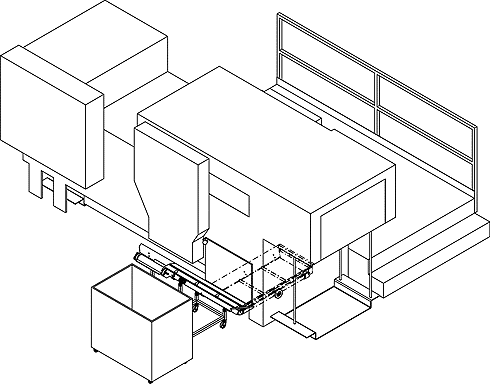

SF 145/65-140 BS

Waste conveyors for the removal of cut waste into a bin. The conveyor is positioned below the stripping unit of the flat-bed die-cutter.



Waste Conveyor   SF 145/65-140 BS SF 145/65-190 BS
Conveying height mm 850 1100
Length of delivery chute mm 1400 1900
Conveying speed
with 50 Hz
m/s 0,40 0,40
Conveying speed
with 60 Hz
m/s 0,48 0,48
Weight kg 120 135

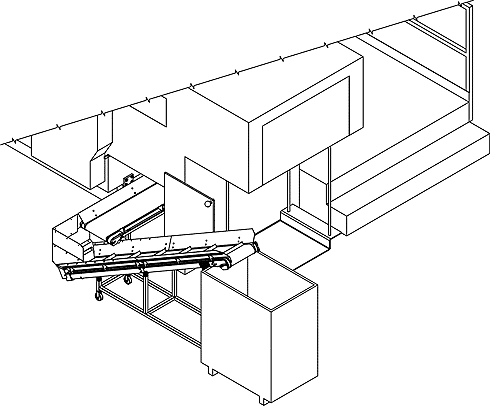

SF 145/50 BS + HF 00-210 BS



For the removal of cut waste into higher bins (up to 190 cm height) with two conveyors.

The waste conveyor can be installed according to the requirements at the left or righthand side or straight away from the cutter.

Waste Conveyor   SF 145/50 BS SF 190/50 BS HF 00-210 BS
Conveying height mm 1450 1900 -
Conveying speed with 50 Hz m/s 0,40 0,40 0,40
Conveying speed with 60 Hz m/s 0,48 0,48 0,48
Weight kg 127 150 75
