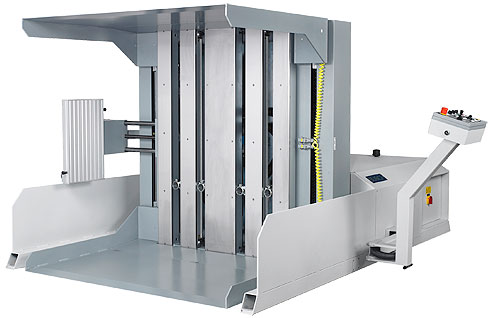

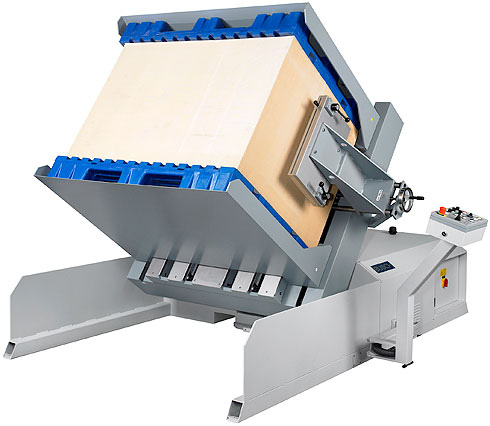

Pile Turner SWH 155
SPEEDTURNER® - powerful and efficient -
For turning, airing, aligning and jogging.
| Model | SWH 155, SWH 155 (R) LA | |
|---|---|---|
| Max. sheet size | mm | 1060 x 1450 |
| Max. pile height | mm | 1600 |
| Min. pile height | mm | 760, 830 (R) LA |
| Platform width | mm | 1550 |
| Platform depth | mm | 1080 |
| Carrying power | kg | 1800 |
Note:
The minimum pile height will be higher on machines with enlarged opening width if equipped with an aligning gauge
SWH 155
a unit for turning only. Machine design like the illustration, but without airing and aligning gauge
Options:
Pressure control flaps (the pile is not compressed), enlarged opening width for higher piles up to 2000 mm and increased carrying power (2200 kg)
SWH 155 LA
with airing (4 blowers), pressure control flaps, regulation of air volume (hand lever), slewable control desk, adjustable aligning gauge, tilting (15°)
SWH 155 RLA
as SWH 155 LA, plus: jogging
Options:
electrical air volume regulation at the control desk,
enlarged opening width for higher piles up to 2000 mm and increased carrying power (2200 kg),
catwalk,
telescopic control desk
