Pile Turners SWH 180
SPEEDTURNER® - powerful and efficient -
For turning, airing, aligning and jogging.
SWH 180 RLA (200)
SWH 180 RLA

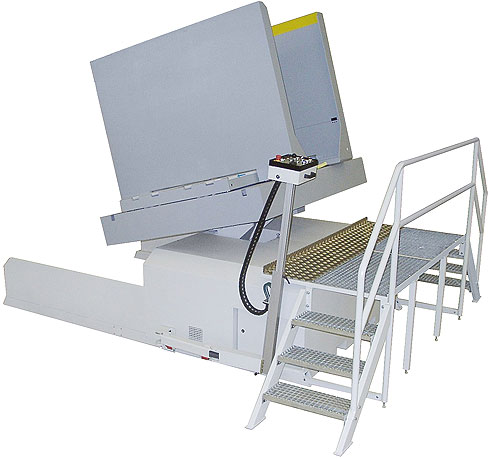

SWH 180 RLA (200) with catwalk and telescopic control desk
| Model | SWH 180, SWH 180 (R) LA | |
|---|---|---|
| Max. sheet size | mm | 1220 x 1650 |
| Max. pile height | mm | 1600 |
| Min. pile height | mm | 760, 830 (R) LA |
| Platform width | mm | 1800 |
| Platform depth | mm | 1235 |
| Carrying power | kg | 1900 |
Note:
The minimum pile height will be higher on machines with enlarged opening width if equipped with an aligning gauge
SWH 180
a unit for turning only but without airing and aligning gauge
Options:
Pressure control flaps (the pile is not compressed), enlarged opening width for higher piles up to 2000 mm
SWH 180 LA
with airing (4 blowers), pressure control flaps, regulation of air volume (hand lever), slewable control desk, adjustable aligning gauge, tilting (15°)
SWH 180 RLA
as SWH 180 LA, plus: jogging
Options:
electrical air volume regulation at the control desk,
enlarged opening width for higher piles up to 2000 mm,
catwalk,
telescopic control desk
Platforms with special measurements can be offered on request
