Pile Turner SWH Semi-Automatic and Automatic
SPEEDTURNER® - powerful and efficient -
For turning, airing, aligning, jogging and transferring piles on to special pallets
Semi-Automatic
For semi-automatic mode of operation with high pile throughput by programmable operation.
Installation without protective fences, as the hydraulic movements are carried out by pressed push-button. Fully automatic airing programs with automatic start and stop.
The pile turner is equipped for 3 working cycles, selectable at the control desk:
- Turning the paper/board pile
- Airing, aligning and jogging the pile
- Airing, aligning, jogging and turning the pile
Adjustable and programmable airing parameters:
- Measure of platform opening in airing position
- Number of air jet travels between the platforms
- Air volume
- Speed of air jets
- Jogging intensity
- Holding or compressing the pile
Equipment:
- Powerful airing
- Pressure control flaps
- Aligning gauge with automatic-pneumatic pile height adaptation
- Jogging
- Control desk - slewable to the front and rear side of the pile turner
- Regulation of air volume at the control desk
- Adjustment for "holding the pile" or "compressing the pile"
- Touch-screen-display for operation and programming incl. program memory for repeat jobs and indication of error messages
| Model | SWH-SA 125 RLA (175) | SWH-SA 155 RLA | SWH-SA 180 RLA | |
|---|---|---|---|---|
| Max. sheet size | mm | 800 x 1200 | 1060 x 1450 | 1220 x 1650 |
| Min. sheet size | mm | 500 x 600 | 500 x 600 | 500 x 600 |
| Max. pile height | mm | 1750 | 1600 | 1600 |
| Min. pile height | mm | 930 | 830 | 830 |
| Platform width | mm | 1250 | 1550 | 1800 |
| Number of air jets | 2 | 4 | 4 | |
| Carrying power | kg | 1200 | 1800 | 1900 |
Options:
- Ionised air
- Enlarged opening height for higher piles up to 2000 mm (SWH-SA 155 and SWH-SA 180)
- Catwalk and telescopic control desk
- Centering device
Automatic
Process acceleration is achieved by complete automation.
The programmable fully automatic operation with reinforced hydraulics enables the high pile throughput.
Reproducible pile treatment is possible by storable airing programs.

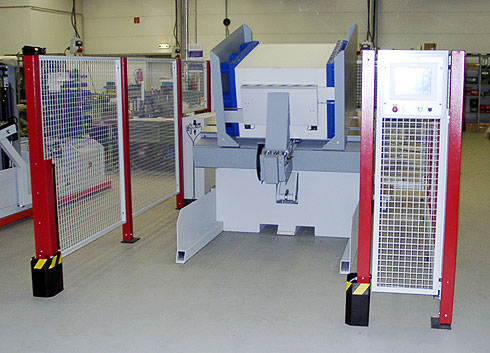

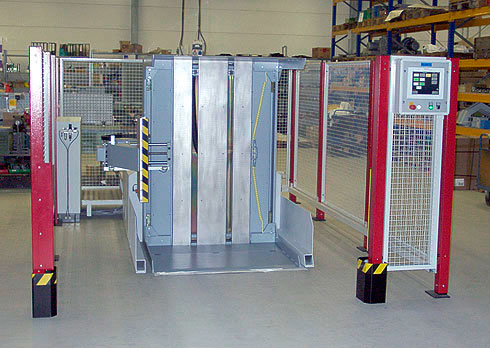

The installation of protective fences with light barriers and the motorized-pneumatic aligning gauge with paper recognition enables the fully automatic operation.
An access without machine stop is possible.
The pile turner is equipped for 3 working cycles, selectable at the control desk:
- Turning the paper/board pile
- Airing, aligning and jogging the pile
- Airing, aligning, jogging and turning the pile
Adjustable and programmable airing parameters:
- Measure of platform opening in airing position
- Number of air jet travels between the platforms
- Air volume
- Speed of air jets
- Jogging intensity
- Holding or compressing the pile
Equipment:
- Fully automatic operation of all working cycles and airing programs
- Protective fences and light barriers
- Faster hydraulics by means of higher output and proportional flow control valve technics
- Powerful airing
- Fully automatic motorised-pneumatic aligning gauge with paper recognition
- Pressure control flaps
- Jogging device
- Regulation of air volume at the control desk
- Adjustment for "holding the pile" or "compressing the pile"
- Touch-screen-display for comfortable programming all functions, selection of working cycles, program memory for repeat jobs (100 programmable airing programs) and indication of error messages
Options:
- Ionised air
- Enlarged opening width for higher piles up to 2000 mm
(SWH 155 RLA-Automatic and SWH 180 RLA-Automatic) - Catwalk at the rear of the machine
- Additional control desk at the rear of the machine
| Model | SWH 125 RLA (175) Automatic |
SWH 155 RLA Automatic |
SWH 180 RLA Automatic |
|
|---|---|---|---|---|
| Max. sheet size | mm | 800 x 1200 | 1060 x 1450 | 1220 x 1650 |
| Min. sheet size | mm | 460 x 400 | 540 x 600 | 540 x 600 |
| Max. pile height | mm | 1750 | 1600 | 1600 |
| Min. pile height | mm | 930 | 870 | 870 |
| Platform width | mm | 1250 | 1550 | 1800 |
| Number of air jets | 2 | 4 | 4 | |
| Carrying power | kg | 1200 | 1800 | 1900 |
